Clamp-On Ultrasonic Flowmeters: Panametrics CTF & Liquid Flow Solutions by Indulge Global
Indulge Global is the UAE’s trusted supplier of Panametrics clamp-on ultrasonic flowmeters, including the industry-leading CTF Ultrasonic Clamp-On Gas Flowmeter and a full range of clamp-on liquid flowmeters. As non-invasive, pipe-external instruments, these meters deliver high-accuracy flow measurement with zero process disruption, no pipe cutting, and no shutdown.
What Is a Clamp-On Ultrasonic Flowmeter?
A clamp-on ultrasonic flowmeter is a non-invasive flow-measurement instrument that attaches to the outside of a pipe. Unlike traditional in-line meters, it requires no pipe cutting, no process shutdown, and no welding, making it one of the most versatile and cost-effective flow measurement solutions available in industrial environments.
The Panametrics CTF and liquid clamp-on series supplied by Indulge Global use the transit-time principle: high-frequency ultrasonic pulses are transmitted diagonally through the pipe wall and the flowing medium. By comparing transit times upstream versus downstream, onboard electronics calculate flow velocity and derive volumetric or mass flow rate in real time.
How Does a Clamp-On Ultrasonic Flowmeter Work?
The transit-time method is the most widely used operating principle for clamp-on ultrasonic flowmeters. Here is how the measurement cycle works from sensor attachment to final flow reading.

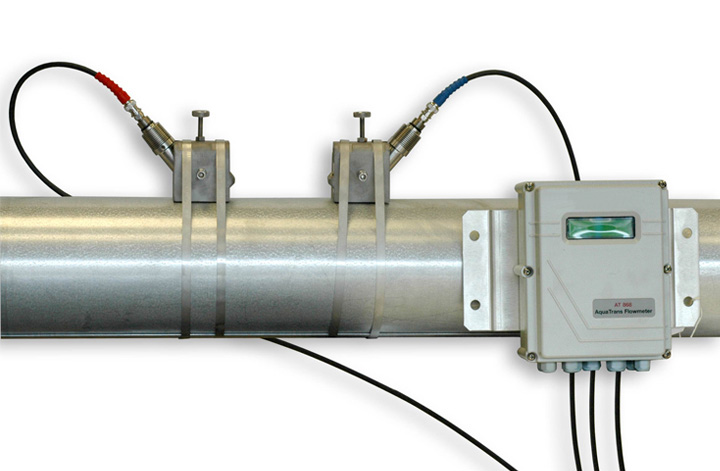

Transducer Clamping
Two ultrasonic transducers are clamped to the outer surface of the pipe — one upstream and one downstream — at a precise spacing calculated from the pipe diameter, wall thickness, and fluid properties.
Ultrasonic Signal Transmission
Each transducer alternates between transmitting and receiving high-frequency acoustic pulses. The signals travel diagonally through the pipe wall, through the flowing medium, and into the opposing transducer.
Transit Time Measurement
The meter measures the transit time upstream (against flow) versus downstream (with flow). Flow accelerates the downstream signal and decelerates the upstream signal — the difference between them is proportional to the flow velocity.
Flow Rate Calculation
Onboard electronics apply the time-difference algorithm, cross-referenced with pipe geometry data entered by the operator, to compute accurate volumetric flow rate and totalized volume in real time.
Data Output & Logging
Results are displayed on the meter’s screen and transmitted via 4–20 mA, RS-485, Modbus, or pulse outputs to SCADA systems, data loggers, or plant control networks for continuous process monitoring.
Reporting & Verification
Indulge Global’s engineers can provide full measurement reports, comparison analysis against in-line reference meters, and calibration certificates — essential for custody transfer and compliance auditing in the UAE.
Types of Clamp-On Ultrasonic Flowmeters
Transit-Time Clamp-On Flowmeter
The industry standard for clean liquid and gas flow measurement. Ideal for applications where the fluid is largely free of solids or entrained gases.
- Best accuracy: typically ±0.5–1% of reading
- Suitable for water, hydrocarbons, and refined gas streams
- Pipe sizes from DN25 up to DN3000+
- Bidirectional flow measurement capability
- CTF gas variant widely used in the UAE energy sector
Clamp-On Ultrasonic Gas Flowmeter
Purpose-engineered for natural gas, compressed air, nitrogen, and other process gases — accounting for the acoustic differences in gaseous media.
- Designed for low acoustic impedance of gases
- High signal-to-noise ratio transducer technology
- Suitable for natural gas pipelines and utilities
- Non-hazardous and ATEX-rated versions available
- Used for gas meter verification across UAE sites
Multi-Path / Multi-Beam Clamp On
Uses multiple pairs of transducers at different chords across the pipe cross-section for highly accurate flow profiling — preferred for custody transfer and large-bore pipelines.
- 2, 4, or 8 measurement paths across the pipe bore
- Compensates for asymmetric flow profiles
- Accuracy approaching ±0.2% in ideal conditions
- Suitable for large-diameter transmission mains
- Ideal for fiscal and allocation metering
Portable Clamp-On Flowmeter
Battery-operated, handheld instruments designed for field surveys, temporary measurement campaigns, and flowmeter verification without permanent installation
- Battery life up to 10–16 hours of continuous use
- IP67 rated, suitable for outdoor UAE environments
- Internal data logger for offline trend analysis
- Quick deployment — operational in minutes
- Available for rental from Indulge Global
Why Choose a Clamp-On Ultrasonic Flowmeter?
Clamp-on ultrasonic flowmeters offer a unique combination of accuracy, flexibility, and total cost of ownership advantages that make them the preferred choice for demanding industrial applications across the UAE.
- Zero Process Disruption: Clamp directly to the outside of existing pipes with no cutting, welding, or process shutdown required, critical for live industrial plants.
- No Pressure Drop: Because there is no intrusion into the flow stream, the flowmeter introduces zero additional pressure drop, preserving process efficiency.
- High Accuracy: Transit-time clamp-on meters achieve ±0.5–2% accuracy on liquid applications and ±1–2% on gas suitable for most process and custody metering needs.
- Universal Pipe Compatibility: Works on steel, stainless steel, GRP, PVC, HDPE, and most industrial pipe materials. Handles pipe sizes from small bore (DN25) to very large diameter mains.
- Remote Monitoring Ready: Multiple output options 4–20 mA, Modbus RTU, RS-485, and pulse enable seamless integration with SCADA, DCS, and Industrial IoT platforms.
- Lower Total Cost: Reduced installation costs, no process interruption penalties, minimal maintenance, and rental availability make clamp-on meters highly economical in the UAE market.
- Wide Temperature Range: Suitable for cryogenic through to high-temperature process lines, important in the UAE’s petrochemical and LNG sectors, where extreme conditions are common.
- Bidirectional Measurement: Simultaneously measures forward and reverse flow, making the technology ideal for distribution networks, pump test loops, and storage facilities.
Indulge Global’s clamp-on flowmeter services — UAE
Beyond the supply of Panametrics clamp-on ultrasonic flowmeters, we offer a complete service wrapper tailored to the UAE’s oil & gas, utilities, and petrochemical sectors:
Supply & commissioning
Full supply of CTF gas flowmeters and clamp-on liquid flow meters with on-site installation and commissioning support.
Flow meter verification
Comparison analysis against in-line reference meters with detailed measurement reports and calibration certificates for compliance auditing.
Short-term rental
Portable clamp-on flowmeters available for rental — ideal for temporary campaigns, surveys, and pre-purchase evaluation.
SCADA & IIoT integration
Engineering support for integrating Panametrics flow data into your plant control network or Industrial IoT platform.
We support custody transfer and compliance auditing requirements across the UAE with full calibration documentation, on-site verification, and post-installation reporting delivered by experienced metering engineers.
